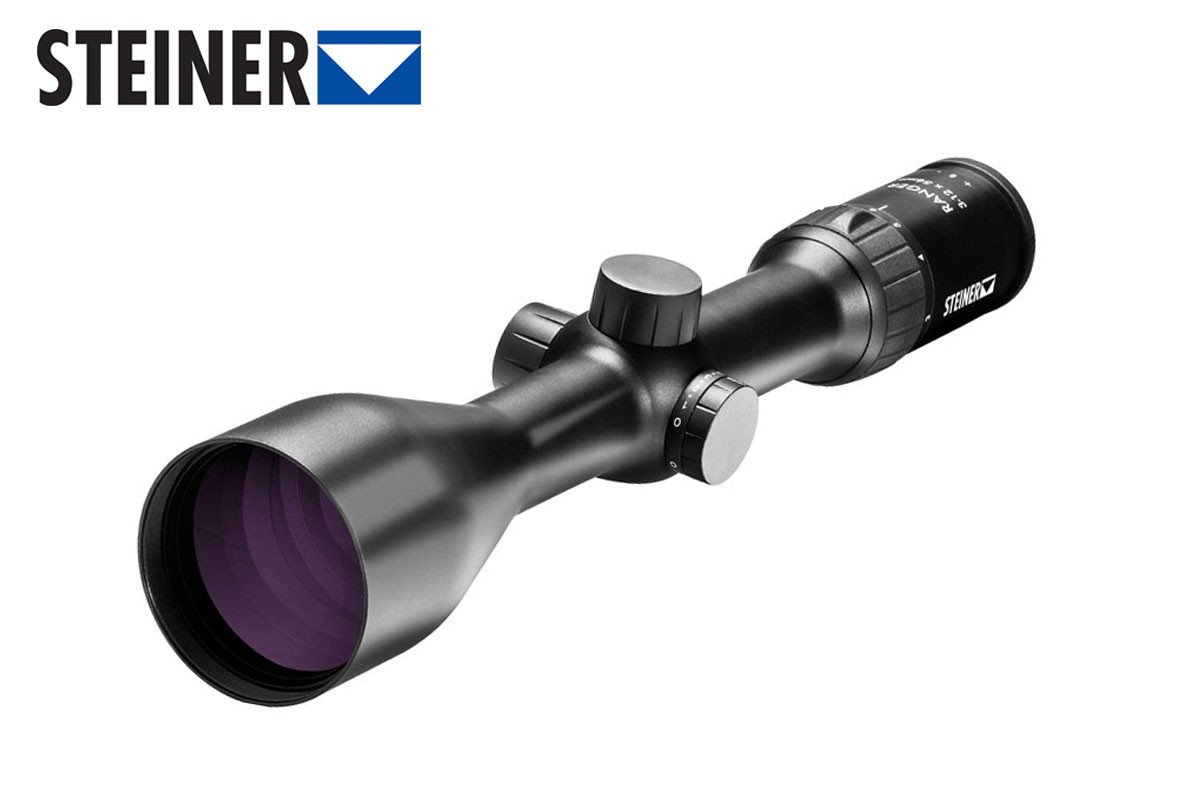

Steiner Ranger 3-12×56 Specifications

Manufacturer Steiner
SKU 8762900204c
Riflescopes series Steiner Ranger
Variable magnification Yes
Minimal magnification 3x
Maximal magnification 12x
Lens diameter 56 mm
Min. exit pupil diameter 4.7 mm
Max. exit pupil diameter 12 mm
Minimal eye relief 90 mm
Maximal eye relief 90 mm
Minimal field of view 3 m/100 m
Maximum field of view 12 m/100 m
Twilight Factor
Light transmission
Reticle position 2. focal plane – SFP
Reticle illumination Yes
Illumination color Red
Adjustment per click 1cm/100m – 0.1mrad
Elevation
Windage No
Turret Type Capped
Elevation Per Turn 0.8 m/100 m
Nr. Turret Turns MT – Multi Turn
Turret rotation direction CCW
Day time usable illumination Yes
Auto-TurnOff -
Parallax setting 100 m
Parallax adjustment No
Parallax adj. range
Diopter range - 3.0 / + 2.0 dpt
Fast focus eyepiece Yes
Lens coating Fully Multicoated
Waterproof Yes
Fogproof Yes
Shockproof Yes
Build in rangefinder No
Temperature range - 25 / + 65°C
Filled with Nitrogen
Color No
Length 337 mm
Tube diameter 30 mm
Objective diameter 63.5 mm
Eyepiece diameter 44.3 mm
Mount length
Mount rail No
Weight 705 g
In production since 2015
Warranty 10 years
Made in USA
